Writeup of the Walkie Hackie challenge

Intro

The challenge intro reveals that we have a signal capture and that we need to “interrupt” the communication between two walkie-talkies.

Our agents got caught during a mission and found that the guards are using old walkie-talkies for their communication. The field team captured their transmissions. Can you interrupt their communication to help our agents escape from the guards?

So let’s start.

---

Challenge

Extracting the files from the ZIP file results in four files named:

• 1.complex
• 2.complex
• 3.complex
• 4.complex

Now, I’ve never seen that file extension before and the file command results in the type being data…so google it is. Google provides the following AI summary: A .complex file is primarily used as a raw radio frequency (RF) signal data file containing IQ (In-phase and Quadrature) data samples, often utilized in software like Universal Radio Hacker (URH).

I wonder how much water that response took…anyways the summary says that the file type is often utilized by URH.

We can install the software with pipx: pipx install urh.

Opening the files inside URH displays the following signals:

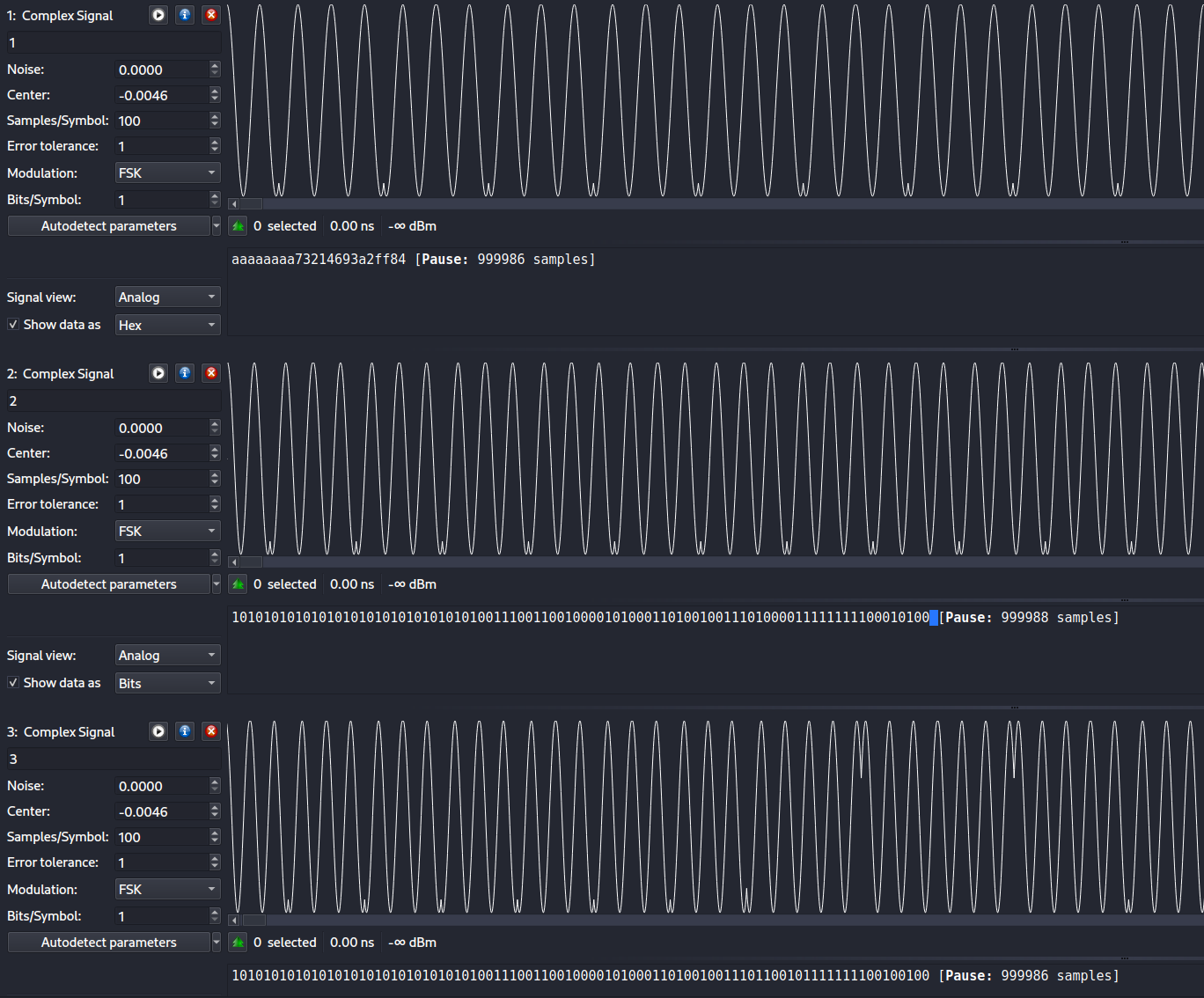

Data shown as wave signals.

URH also has an analysis tab that tries to analyze the signal:

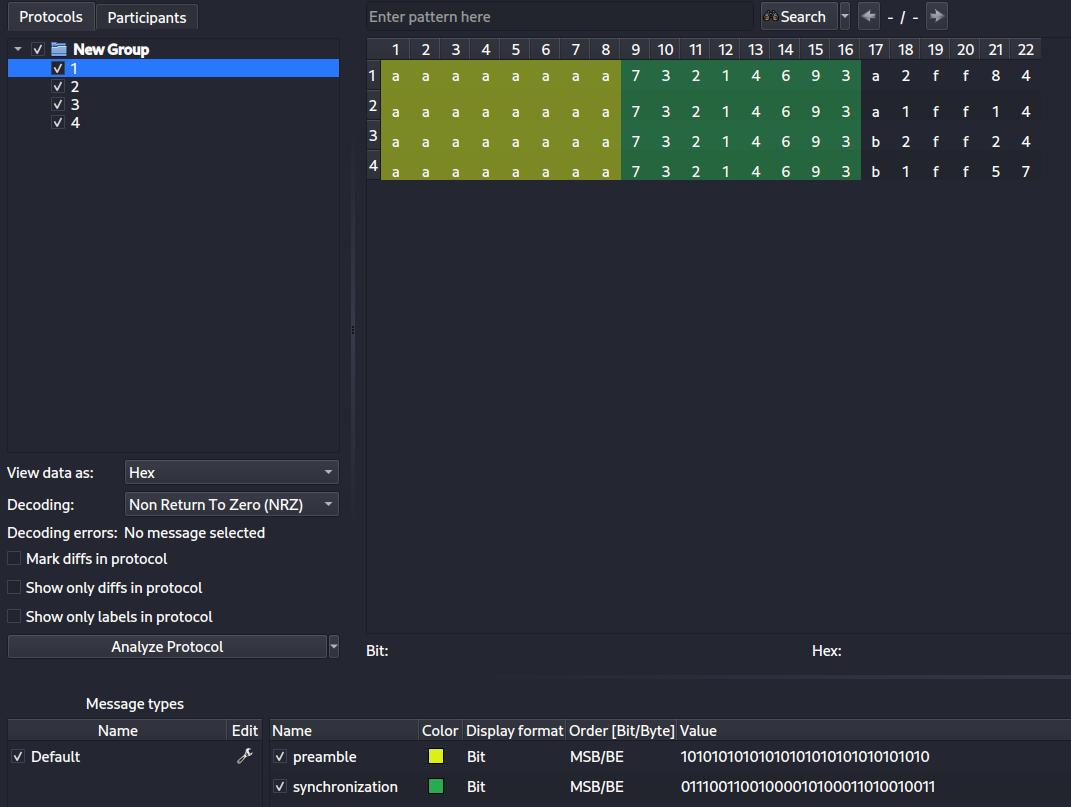

Decoded binary signals to hexadecimal values.

URH also helpfully highlights what it calls the preamble and the synchronization packets. These appear to be the same across all four signals, with the difference between the signals being the last few bytes. The last few bytes of each signal in order being:

1. a2ff84
2. a1ff14
3. b2ff24
4. b1ff57

The last segment seems to always contain 0xff in the middle of the signal. Except that, no data can be retrieved, so we can take a look at the web page this challenge spawns.

The web page allows us to send “RF signals over HTTP”:

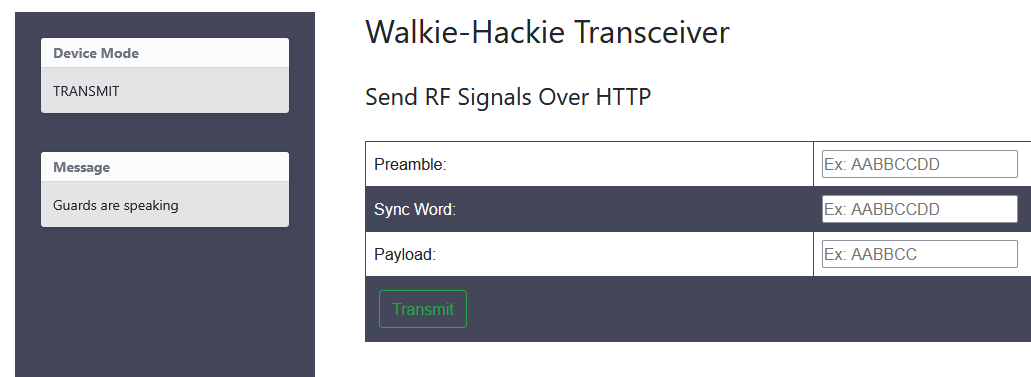

Form to be filled out.

Filling out the form and clicking “Transmit” sends a POST request to the /transmit endpoint with the following body:

POST body with parameters pa, sw, and pl.

Thanks to the analysis of the signals, we can conclude that the preamble parameter should be aaaaaaaa and the synchronization word should be 73214693. We are left with figuring out what the payload parameter should be.

We can try to brute-force the payload by using the fact that the first part of the payload goes a2 -> a1 -> b2 -> b1. So we can either try a2 again or c2. The middle part should remain ff, while the last part could then be brute-forced.

We can write a short python script that will generate all possible payloads:

for i in range(256):
  print(f'{i:02x}')

And running it like python3 gen.py > payloads.txt gives us a list of all possible payloads to test out:

❯ ffuf -u http://154.57.164.77:31245/transmit -X POST -d 'pa=aaaaaaaa&sw=73214693&pl=c2ffXX' -w payloads.txt:XX -H 'Content-Type: application/x-www-form-urlencoded' --fw 403                               ─╯

        /'___\  /'___\           /'___\
       /\ \__/ /\ \__/  __  __  /\ \__/
       \ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
        \ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
         \ \_\   \ \_\  \ \____/  \ \_\
          \/_/    \/_/   \/___/    \/_/

       v2.1.0-dev
________________________________________________

 :: Method           : POST
 :: URL              : http://154.57.164.77:31245/transmit
 :: Wordlist         : XX: /home/kali/HTB/Challenges/Hardware/Very Easy/WalkieHackie/payloads.txt
 :: Header           : Content-Type: application/x-www-form-urlencoded
 :: Data             : pa=aaaaaaaa&sw=73214693&pl=c2ffXX
 :: Follow redirects : false
 :: Calibration      : false
 :: Timeout          : 10
 :: Threads          : 40
 :: Matcher          : Response status: 200-299,301,302,307,401,403,405,500
 :: Filter           : Response words: 403
________________________________________________

f9                      [Status: 200, Size: 2896, Words: 420, Lines: 134, Duration: 96ms]
:: Progress: [256/256] :: Job [1/1] :: 0 req/sec :: Duration: [0:00:00] :: Errors: 0 ::

By setting the first unknown to c2 and brute-forcing the last part with fuff we get a different response when the last part is f9.

By going to the web page and manually sending the preamble as aaaaaaaa, synchronization word as 73214693, and the payload as c2fff9 we get the following response:

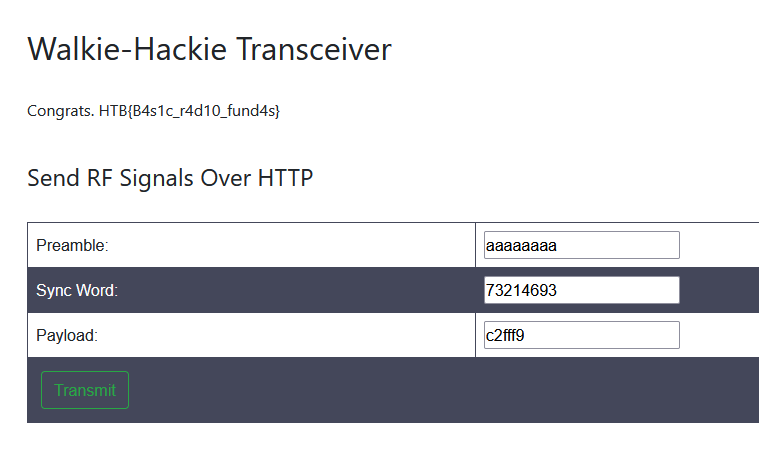

Flag obtained.

The response contains the flag: HTB{B4s1c_r4d10_fund4s}, and with that the challenge is over.

Extra Mile

---

In this extra mile I wanted to figure out an oddity in the waveform. UHR detects that the signal is modulated using FSK (Frequency Shift Keying) and it properly decodes it using FSK, yet the waveform indicates that the signal is using PSK (Phase Shift Keying). For a visual comparison:

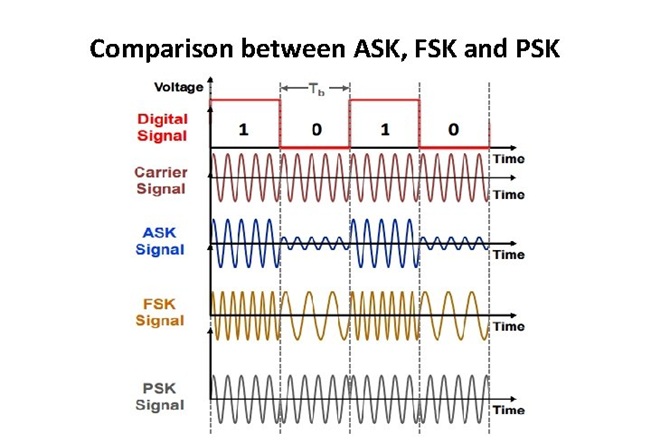

Waveform comparison for different modulation methods. Source from: https://medium.com/@divyanshu.chore/fsk-vs-psk-a-comparison-of-digital-modulation-techniques-74f94caf731d.

And comparing it to the waveform we have:

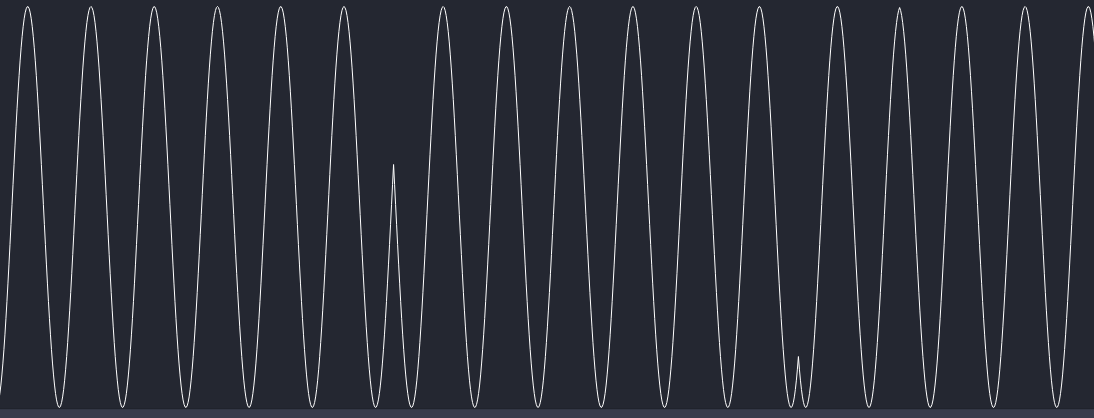

Waveforms of the challenge signal.

It’s obvious that this signal should be modulated using PSK, yet the signal itself uses 2 frequencies as shown by the spectrogram view in UHR:

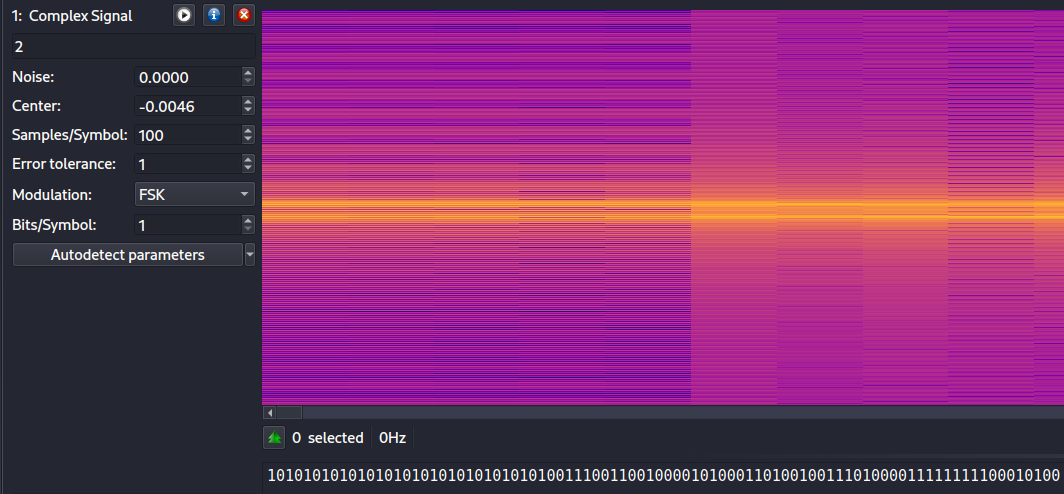

Spectrogram showing two distinct frequencies.

After a bit of googling, I found this post that had a similar issue: https://ham.stackexchange.com/questions/7079/transmitted-fsk-sniffed-something-psk-looking.

It would seem that UHR centers the frequency to decode FSK signals, but this also means that the shift changes the “sign” of the signal. You can think of changing the “sign” of a signal to correspond to the change of its direction. So, as an example, if the signal was going up, the change of the sign would cause it to go down. This in turn reflects what we are seeing with the signal itself.

In addition, the changing of the “sign” of a signal corresponds to a phase shift of 180° explaining why the signal looks like it uses PSK.

If you have more insight into this subject matter feel free to leave a comment below.
